Variant B – Straight flap with holes for seals.
XXL bubble mailers – with print
The largest standard format available on the market is K/20 (internal dimensions: 35×47 cm, external dimensions: 37×48 cm), which is insufficient for some of our customers.
For demanding clients, we offer the largest bubble mailer format, XXL/29, with external dimensions of 450×480 mm and internal dimensions of 430×470 mm. Due to the large surface area, these mailers are exclusively made from durable brown or white kraft paper.
The minimum order quantity for XXL mailers, plain or printed, is one pallet. These large mailers are typically packed in cartons of 50 units.
Intermediate formats between K/20 and XXL/29
As you are ordering directly from the manufacturer, you have the ability to customize printed bubble mailers perfectly to your needs! Below is a table that will help you decide on intermediate formats, from L/22 to R/28, which we produce between the standard K/20 and the extra-large XXL/29. These formats can also be produced plain or printed in quantities starting from 1 pallet. These large mailers are typically packed in cartons of 50 units.
Dimensions – in detail |
|||||||||
format | Dimensions | Outer width | External height | Internal width | Internal height | ||||

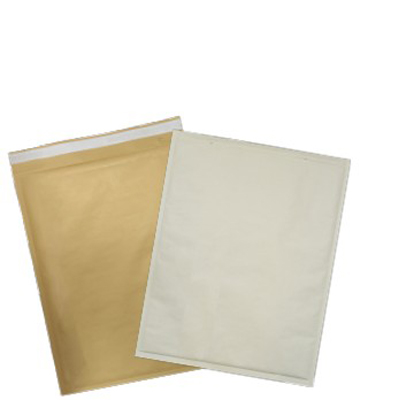

K/20 | 370×480 /350×470 | 370 | x | 480 | / | 350 | x | 470 | mm |

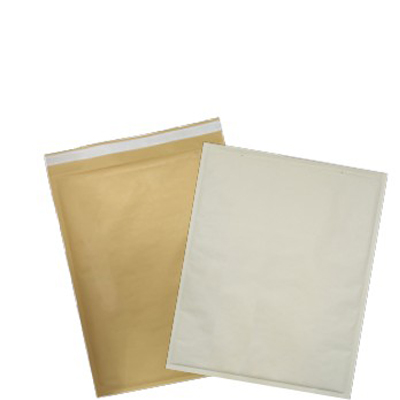

L/22 | 380×480/360×470 | 380 | x | 480 | / | 360 | x | 470 | mm |

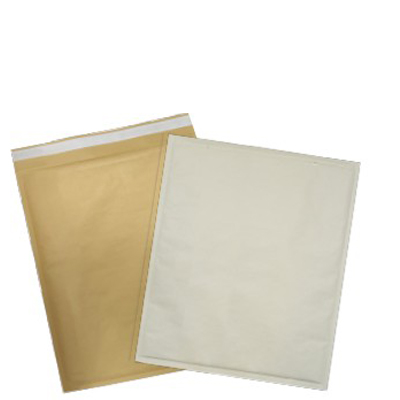

M/23 | 390×480/370×470 | 390 | x | 480 | / | 370 | x | 470 | mm |

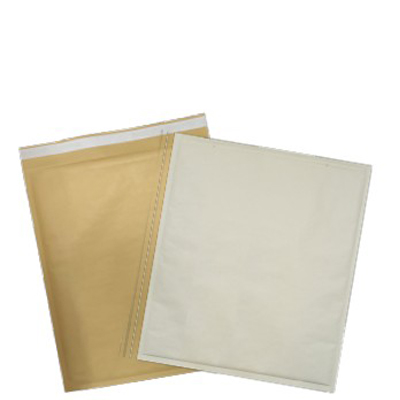

N/24 | 400×480 / 380×470 | 400 | x | 480 | / | 380 | x | 470 | mm |

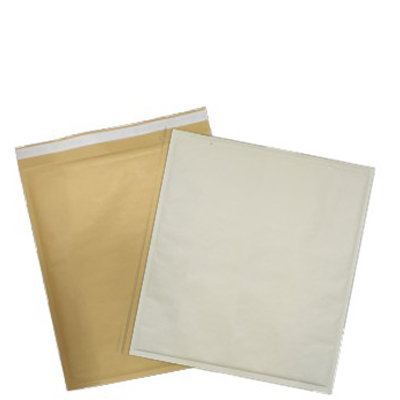

O/25 | 410×480 / 390×470 | 410 | x | 480 | / | 390 | x | 470 | mm |
P/26 | 420×480 / 400×470 | 420 | x | 480 | / | 400 | x | 470 | mm |

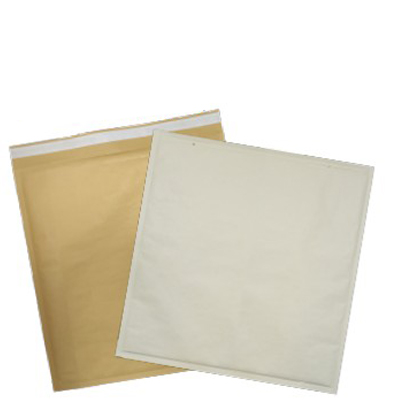

Q/27 | 430×480 / 410×470 | 430 | x | 480 | / | 410 | x | 470 | mm |

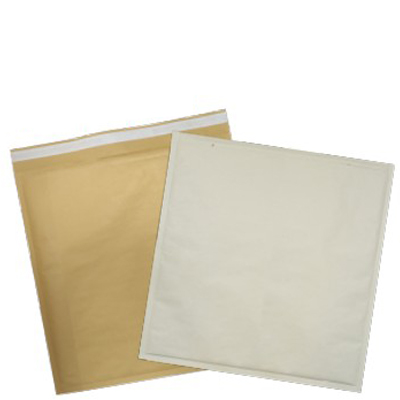

R/28 | 440×480 / 420×470 | 440 | x | 480 | / | 420 | x | 470 | mm |

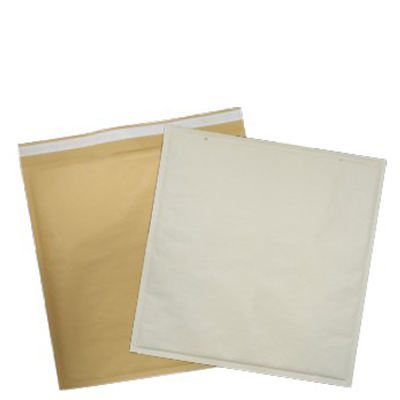

XXL/29 | 450×480 / 430×470 | 450 | x | 480 | / | 430 | x | 470 | mm |
TO PLACE AN ORDER:
Submit an inquiry:
Print options available
PRINT 1+0 meaning one selected color, single-sided printing (available for quantities of 1 pallet and larger)
Good to know: 1+0 printing is more cost-effective and the most frequently chosen option for bubble mailers.
/
FULL SURFACE PRINT with selection meaning printing on the entire surface of the mailer,
usually double-sided, front print 1-3 spot colors, back print 1 color (available for quantities of 1 pallet and larger)
/
/
PRINT 2+0
meaning two selected colors, single-sided printing (available for quantities of 1 pallet and larger)
/
PRINT 3+0
meaning three selected colors, single-sided printing (available for quantities of 1 pallet and larger)
/
ENDLESS PATTERN PRINT
meaning a single selected color, single-sided or double-sided printing, where the front features the logo and postal information, website, advertisements, and the back has a simple, endless pattern in the graphic style of the ordering company (available for quantities of 1 pallet and larger)
/
Good to know: We select colors based on submitted files or as specified by the Client. Single-color printing is the most cost-effective and most frequently chosen option. The print area covers the entire external surface of the mailer.
Information for specialists: We assemble bubble mailers from 2 independent paper rolls, the back roll and the front roll – therefore, we do not align the front print with the back print and vice versa.
What this means in practice: If a print with imprints / logo is on the front, the back can be unprinted, or a single-color solid area (APLA), or a single-color, large-scale endless pattern print. If a print with imprints / logo is on the back, the front can be unprinted, or a single-color solid area (APLA), or a single-color, large-scale endless pattern print.
Choice of brown kraft paper or white kraft paper 75 g/m²
/
Product packaging information:
Variant A – Straight flap. – STANDARD for large bubble mailers.
Flap elements:
Options for Variant A:
1 – The packer places the item in the envelope and removes the silicone-coated strip.
2 – The packer closes the flap, and the adhesive securely bonds to the paper. The item is then ready for shipment.
3 – The recipient opens the flap by pulling on it and removes the item. The mailer’s design allows for recycling, separating the paper from the plastic film.
– Flap elements:
I – Adhesive;
II – Silicone-coated paper strip protecting the adhesive from drying out;
III – Holes for seals (for formats A/11, B/12, and C/13, as well as other formats with an mailers width up to 15 cm – 1 hole. Wider mailers are equipped with 2 holes for seals).
Options for Variant B:
1 – The packer places the item in the mailer and removes the silicone-coated strip.
2.a – The packer closes the flap, and the adhesive securely bonds to the paper. The item is then ready for shipment;
OR
2.b – The packer closes the flap, the adhesive bonds to the paper, and a security seal with a unique number is applied. The item is then ready for shipment.
3 – The recipient opens the flap by pulling on it and removes the contents. The mailer’s design allows for recycling by separating the paper from the plastic film.
Variant C – Trapezoid flap, envelope with control strip, no seal holes
Flap elements:
I – Adhesive;
II – Silicone-coated paper strip protecting the adhesive from drying out;
III – Trapezoid cutout to facilitate lifting the flap from the polyester control strip;
IV – Control strip – used to inspect the contents after packing and before shipping. Allows the flap to be opened without damaging the flap or the adhesive.
Options for Variant C:
1 – The packer places the item in the mailer and removes the silicone-coated strip.
2 – The packer closes the flap, sticking it to the control strip; the adhesive seals the mailer temporarily.
3 – The inspector lifts the flap from the control strip, checks the contents, and adds any documents if needed.
4 – The inspector re-seals the flap; this time, the adhesive bonds permanently to the paper. The item is then ready for shipment.
5 – The recipient opens the flap by pulling on it and removes the contents. The mailer’s design allows for recycling by separating the paper from the plastic film.
Variant D – Trapezoid flap, mailer with control strip and seal holes
Flap elements:
I – Adhesive
II – Silicone-coated paper strip protecting the adhesive from drying out
III – Trapezoid cutout to facilitate lifting the flap from the polyester control strip
IV – Holes for seals (for formats A/11, B/12, and C/13, as well as other formats up to 15 cm in width – 1 hole. Wider mailers are equipped with 2 seal holes)
V – Control strip – used to inspect the contents after packing and before shipping. Allows the flap to be opened without damaging the flap or the adhesive
Options for Variant D:
1 – The packer places the item in the mailer and removes the silicone-coated strip.
2 – The packer closes the flap, sticking it to the control strip; the adhesive seals the mailer temporarily.
3 – The inspector lifts the flap from the control strip, checks the contents, and adds any documents if necessary.
4.a – The inspector re-seals the flap; this time, the adhesive bonds permanently to the paper. The mailer is ready for shipment;
OR
4.b – The inspector re-seals the flap, the adhesive bonds permanently to the paper, and a security seal with a unique number is applied. The mailer is ready for shipment.
5 – The recipient opens the flap by pulling on it and removes the contents. The mailer’s design allows for recycling by separating the paper from the plastic film.
Variant E – E-commerce flap
Mailer with a tear strip for easy opening and an additional adhesive strip for returns.
Flap elements:
I – Adhesive – x2
II – Tear tape / filament – Enables quick and easy opening of the mailer without damaging the second adhesive strip (covered with a white silicone-coated liner)
III – Silicone-coated paper strip protecting the adhesive from drying out – x2
IV – Perforations – Located on both sides of the strip (left and right sides of the mailer), allowing for smooth tearing to open the mailer
Options for Variant E:
1 – The packer places the item in the mailer and removes the wider, upper silicone-coated strip.
2 – The packer closes the flap; the adhesive bonds permanently to the paper. The mailer is ready for shipment.
3 – The recipient opens the flap by pulling the tear tape from the left or right side at the clearly marked perforations.
4 – The tear tape cuts through the flap without damaging the second adhesive strip. The recipient removes the contents.
5 – If the recipient chooses to return the item, they place it back in the mailer along with the necessary documents and remove the second silicone-coated strip.
6 – The recipient reseals the flap; the adhesive bonds permanently to the paper. The return is ready to be sent.
7 – The seller opens the flap by pulling on it and retrieves the returned item. The mailer’s design allows for recycling by separating the paper from the plastic film.
Variant F – Flap with tear strip for opening
Flap elements:
I – Adhesive – x1
II – Tear tape / filament – Enables quick and easy opening of the mailer
III – Silicone-coated paper strip protecting the adhesive from drying out – x1
IV – Perforations – Located on both sides of the strip (left and right edges of the mailer), allowing for smooth tearing to open the mailer
Options for Variant F:
1 – The packer places the item in the mailer and removes the silicone-coated strip.
2 – The packer closes the flap; the adhesive bonds permanently to the paper. The mailer is ready for shipment.
3 – The recipient opens the flap by pulling the tear tape from the left or right side at the clearly marked perforations. The tape cuts through the flap.
4 – The recipient removes the contents. The mailer’s design allows for recycling by separating the paper from the plastic film.
Available seal constructions on the market are made from various materials, but their purpose remains the same. Each seal has a unique number. It is applied to secure the goods against tampering and unauthorized opening.
Ask about FSC® certified products
It is possible to order bubble mailers made with FSC® certification and with the FSC® product label applied to the front or back of the mailer.
The FSC® MIX category is available for white kraft and brown kraft paper 75gsm.
It is possible to produce mailers with the FSC® license code label FSC® C134989 assigned to Packair Sp. z o.o., or with the end client’s FSC® license code, or with the intermediary’s FSC® license code.
Certification is available for any order quantity and does not require an additional fee. Ask about FSC® certified products.
What files to provide (for print inquiries only):
Good to know: Ecobag Network will support you at every step of your order. If anything is unclear to you, don’t waste your valuable time – provide what you know, and we will take care of the rest and provide expert advice.
What do I need to determine to submit an inquiry?:
3. Determine the order quantity (most commonly ordered – quarterly demand)
2. Choose the bubble mailer formats (often more than 1 format – varying sizes of shipped products)
1. For print inquiries, provide files or descriptions of the print you are interested in (we select the technology based on the provided: print description, or draft file, or print-ready file)
